CA SERIES PRODUCT FEATURES:
. High gray level and refresh rate, vivid image and video.
. Fast locking system for better consistency and seamless assembly.
. No mosaic phenomenon ,better contract ratio.
. High-precision die-casting design,light weight and easy assembly/dismantle.
. Nationstar leds, High refresh rate, high grey scale for TV STUDIO / TV STATIONS.
PRODUCT TECHNICAL SPECIFICATIONS:

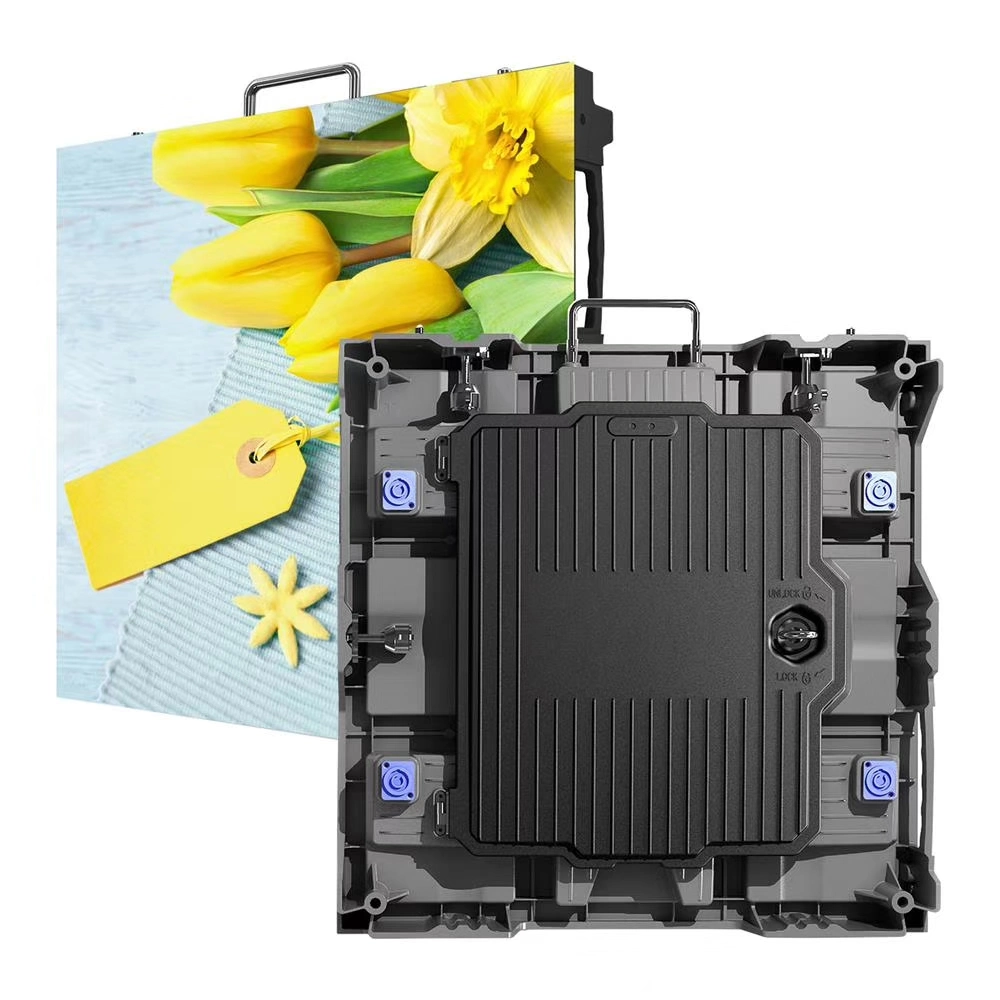

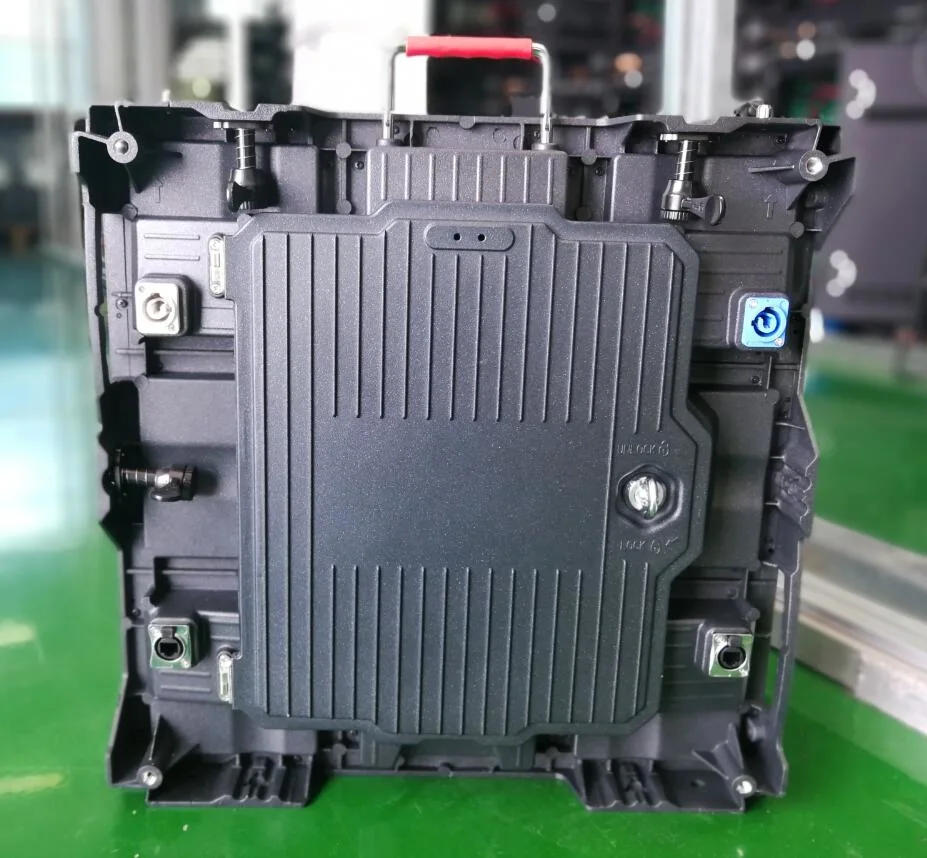

PRODUCT PHOTOS:
Pacage:
WORKSHOP:
PROCESS:

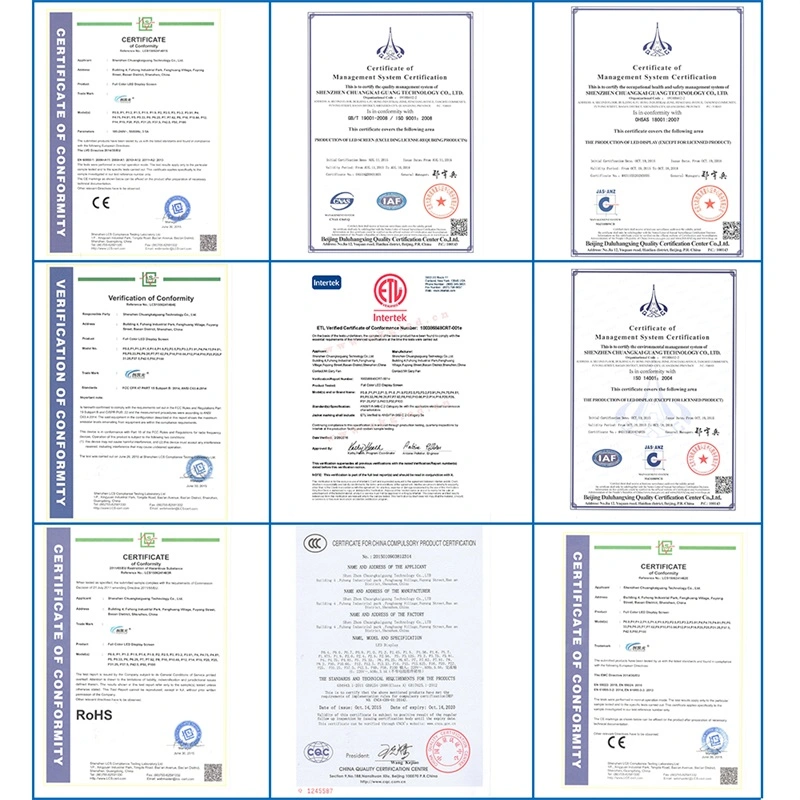

Certificates:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
. High gray level and refresh rate, vivid image and video.
. Fast locking system for better consistency and seamless assembly.
. No mosaic phenomenon ,better contract ratio.
. High-precision die-casting design,light weight and easy assembly/dismantle.
. Nationstar leds, High refresh rate, high grey scale for TV STUDIO / TV STATIONS.
PRODUCT TECHNICAL SPECIFICATIONS:
| NO. | Parameter | Specifications |
| 1 | Model | CA2 |
| 2 | Pixel Pitch(mm) | 2.5 |
| 3 | LED encapsulation | SMD2020 |
| 4 | Screen Resolution(dots/sqm) | 160000 |
| 5 | Scan Method | 1/32 |
| 6 | Module size(mm) | 160x160 |
| 7 | Cabinet size(L*W*H) | 480x480x80mm |
| 8 | Maintenance | Front / Rear service |
| 8 | Cabinet(Kg) | 6.8KG |
| 9 | Viewing angle | H:160° V:160° |
| 10 | Grey Scale | 16bit |
| 11 | Refresh rate(HZ) | ≥3840 |
| 12 | Brightness(nits) | ≥1200 |
| 13 | Working Voltage(V) | AC 100~240V |
| 14 | AVE. power consumption (W/sqm) | 240 |
| 15 | MAX. power consumption(W/sqm) | 560 |
| 16 | IP grade | IP31 |
| 17 | controller | Nova |
| 18 | Working humidity | 10~90%RH |
| 20 | Working temperature | -20ºC~40ºC |
| 21 | Storage temperature | -40ºC~70ºC |
PRODUCT PHOTOS:
Pacage:
WORKSHOP:
PROCESS:
Certificates:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
