Product Description
1.High Brightness and Saving Engergy
Outdoor HD led display leader,very mature product,each type is at least 2 years ahead of the industry. Using the high brightness led light with the lowest consumption, saving engergy ≥30%, with 28 core technologypatent, whole saving engergy≥50%, energy saving and environment protection.
Adopt general led module series with core technology, make it possible for customer to upgrade the screen to smaller pixel pitch,Increase the secondary marketing opportunity and maintain good relationship.
2.Support Format Low Cost Installation
Broadct color gamut, intelligent adjustment for color temperature and brightness.Uniform color, high contrast, the picture is vivid and nature. Support main displaying format, workable for DVI HDMI 3G/HD/SD SDI display format. Modularized design,low cost for installation and maintenance, easy to operate,support hot plugging.
3.Double Security Strong and Flat
IP65 for rear and back side, fit for naked installation without decoration.Dual backup for power supply and system,double security. The surface is dark black, strong and flat, UV-resistancemodule components,make the screen keep flat
Product Specification for Refernece
| 960mm*960mm Outdoor P10 Rental Led Display | |||
| Item: | P10-4S | ||
| Model Number: | 320mm*160mm | ||
| Cabinet Size: | 960mm*960mm | ||
| Pixel Pitch: | 10 mm | ||
| Pixels Density: | 10000 dots/m² | ||
| Pixel Configuration: | 1R1G1B | ||
| Package Mode: | SMD3535 | ||
| Pixel Resolution: | 64dots(W)*32dots(H) | ||
| Drive Type: | Constant drive | ||
| Scan Mode: | 1/4 scan | ||
| Port Type: | HUB75 | ||
| Brightness of White: | 7500cd/m² | ||
| IP rate: | IP65/IP54 | ||
| Input Voltage: | AC220V/110V,50HZ/60HZ (±10%) | ||
| Output Voltage | 5V,60A | ||
| Best Viewing Distance | ≥10m | ||
| Refresh rate | 2000HZ | ||
| Grey scale levels | R(256bit) x G(256bit) x B(256bit) | ||
| Display Colors | R(1024) x G(1024) x B(1024) | ||
| Working Temperature | -20~50ºC/10~90%RH | ||
| Malfunction dot rate | < 0.0001 | ||
| Life-span | 100,000 hours | ||
| Warranty | 2 years | ||
| Cabinet weight | 26kg | ||
| Package: | Flight Case(3in1) size: 120*56*115cm; Gross weight:155kg | ||
Applications

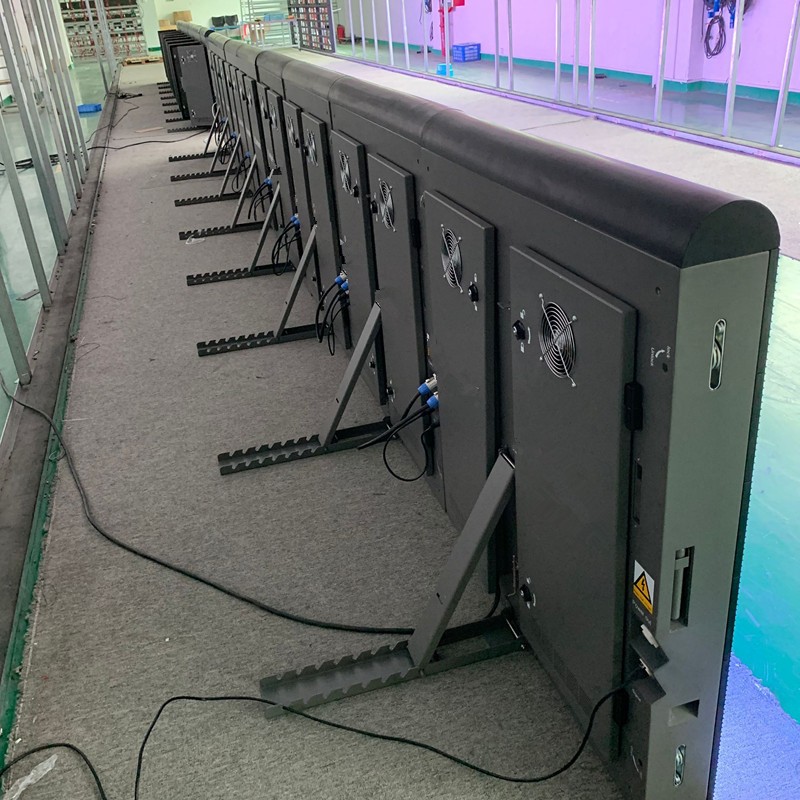

1)Sports Stadium Perimeter LED Display
2)Outdoor Rental led display

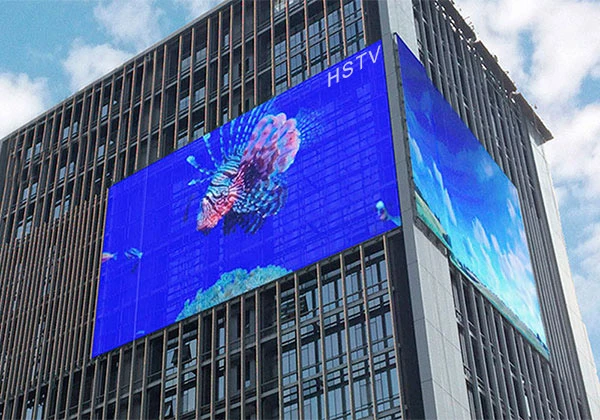

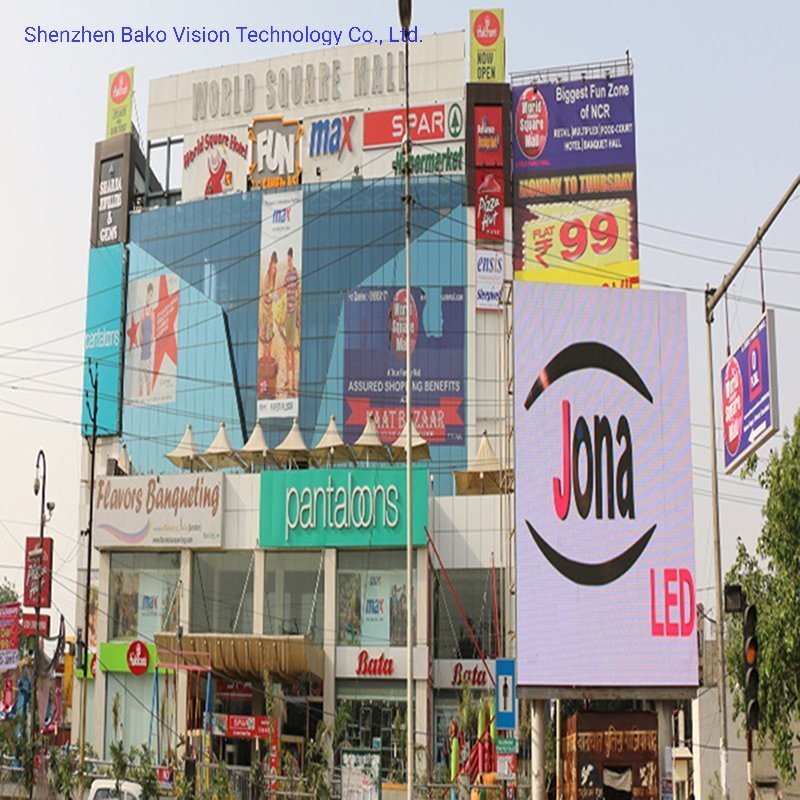

3)Outdoor Fixed installation LED Display
Hot Selling Product
Packaging & Shipping
Why Choose Us?
Products Certificate
Our Company
Chipstar LED Co., Ltd. specialized in manufacturing indoor and outdoor high-definition full-color LED display, LED lighting and lighting application products.Our company has professional production equipment and excellent technology, industry veteran, high-quality, high standards of modern management team, a high level of professional and technical developer, has many years of operating experience and well-trained, a significant number of skilled workers.
Our products has passed CE, FCC and ROHS certificate. reliable quality, advanced technology, perfect technology, automation of form a complete set of production equipment, standard production line, perfect sales network and good pre-sales after sales service is to provide high quality products and continuous development of our roots.
Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, , Canada, Singapore, Japan,etc.
FAQ
1. How to Select a Led Display
Location is the most important factors for selecting the correct LED display.Different type of location such as rooftop,large billboards and stage backdrops or requires front access for servicing will require different led cabinets and modules.
2. Size,Shape and Pitch
Size:Once you have measured the height, width and depth of the space and availability, then you want to make sure the selected LED size (and number of cabinets, height, width & depth) can be accommodated.
Shape:determines if curve or column or flat screens are required.
Pitch:determines the contents of the display and the range of viewing.
3. LED Facing Direction
Outdoor LEDs facing east or direct west sunlight will require higher lamination than those facing north or south. The larger outdoor billboards and configurations must be equipped with automatic light sensors to automatically adjust brightness in reaction to sunlight and cloud covers.
4. Selecting Your LED Supplier
Manufacturer and Manufacturer's qualification and expertise
Manufacturer's investment in technology,design and development
Manufacturer's commitment to design,manufacturing and support
Manufacturer's technology partners
Qualified and Certified local re-sellers network
Chipstar hopes that you will not only consider the technology and the product but also our long-term commitments.
